Description

Core Lighting PSHK-288W-24V-UNV-CL2

PSHK-288W-24V-UNV-CL2 Product

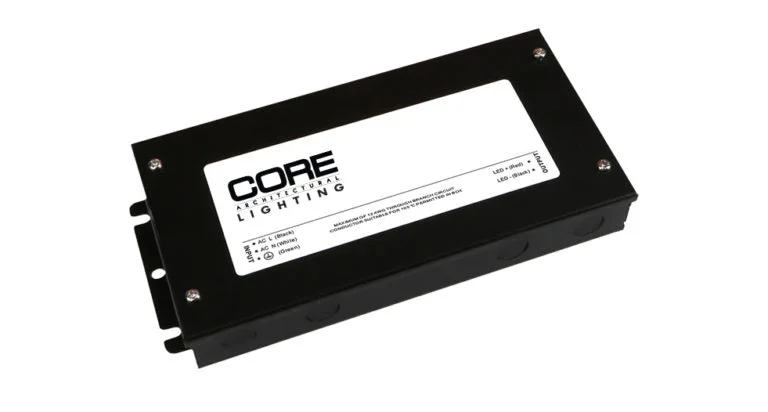

PSHK SERIES indoor/outdoor drivers are non-dimming transformers with an integrated UL listed junction box. These efficient, low-voltage power supplies are class 2 compliant (up to 96w series driver), making them safe and inspection ready. The wet/dry housings are IP66 rated designed to fit most installations.

Specification:

Manufacturer:  Core Lighting
SKU: PSHK-288W-24V-UNV-CL2
CLASS 2: Yes
Load Regulation: 2%
Line Regulation: 5%
Input Frequency: 47-63 Hz
Efficiency: > 86%
MTBF: 50,000 Hrs.
Short Circuit: Shut down, re-power on
Overloading: < 120% shut down o/p voltage
Operating Temperature: -40°F (-40°C) ~ +140°F (+60°C)
Function Surface Temp: -40 to 80 (25 C AMB)
Storage Temperature:  -40°F (-40°C) ~ +176°F (+80°C)
Dimensions: (11.85 x 4.25 x 1.82”) (LxWxH)
CERTIFICATIONS: UL Listed, cUL Listed
