Description

Core Lighting RGB-CT550

RGB-CT550 Product

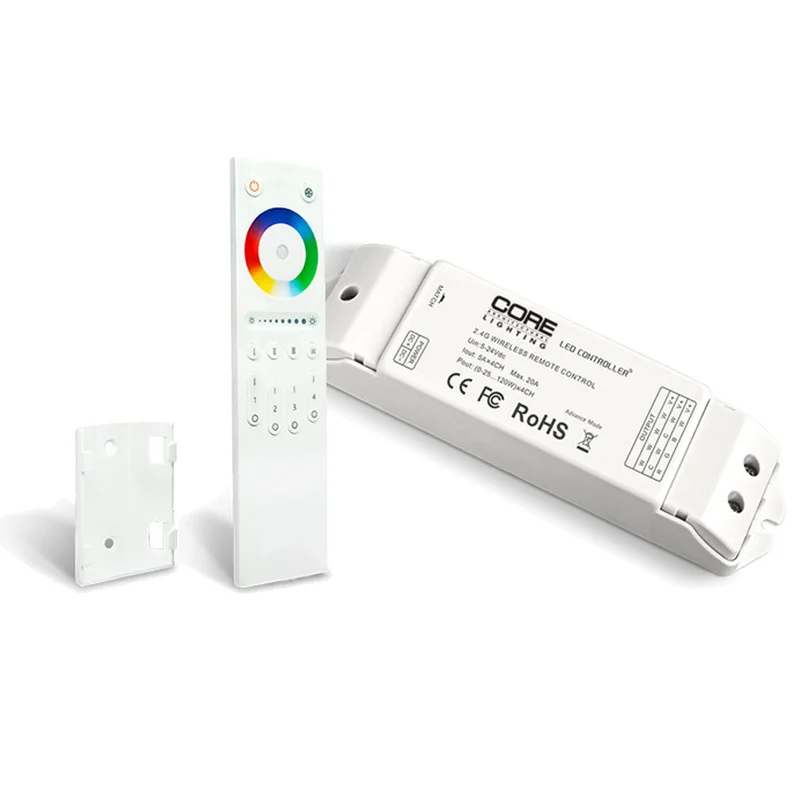

The RGB CT-550 Wireless Receiver & Control System controls up to 4 independent zones of RGBW (Red, Green, Blue, and White) light. With the addition of white light, brighter colors can be achieved as well as the introduction of the pastel range, which will satisfy color requirements for the most discerning lighting designers.

Specifications:

Manufacturer: Core Lighting
SKU: RGB-CT550
INPUT VOLTAGE DC5V ~ DC24V
POWER CAPACITY 100W (5V) | 240W (12V) | 480W (24V)
NO. CHANNELS 4-Zone Control
OUTPUT CURRENT (MAX) 5A per Channel (20A Total)
REMOTE DISTANCE 50M (Line of Sight)
OPERATING TEMPERATURE -22°F (-30°C) ~ 131°F (55°C)
CERTIFICATIONS RoHS, CE
PROTECTION Reverse connection protection, Over Current, Over-Heat, Short Circuit
WORKING FREQUENCY 2.4 GHz
REMOTE DIMENSIONS 6.38 x 1.65 x 0.59” (LxWxH)
REMOTE WEIGHT 0.44lbs
