Description

Diode LED DI-TB8-60SPL-TTW-1

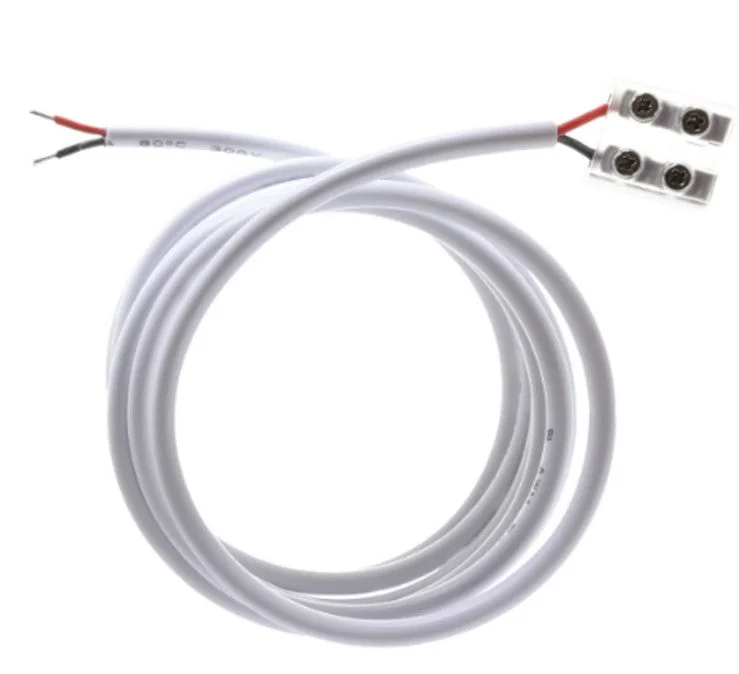

DI-TB8-60SPL-TTW-1 Product

Create easy, fast, and secure tape light connections with the new Tape Light Terminal Block Connector. It features screw down connections and a small form factor for minimal presence in tight spaces.

Specifications:

Works with 8mm wide tape light only
Voltage 12 – 24VDC
Max. Amperage 12V – 5A / 24V – 4A
Wire Gauge 16 AWG – 20 AWG
Dimensions 0.58 x 0.5 x 0.23 in. (L x W x H)
Environment Indoo
Ambient Temperature -4° – 122°F (-20° – 50°C)
Warranty 5-Year Warranty

About Diode LED:

Diode LED is America’s largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
