Description
6W, 2700K – 4000K, 625 lm – 700 lm
Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.
Product Features
- Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used.
- IC for use with direct contact to insulation
- Height allows for use in ceilings with under 4″ depth. Ceiling thickness can be reduced from fixture depth.
- Daisy chain up to 6 fixtures with E1LDRV60
- 28, 38 and 50 beam options, not reccomended for in field changes.

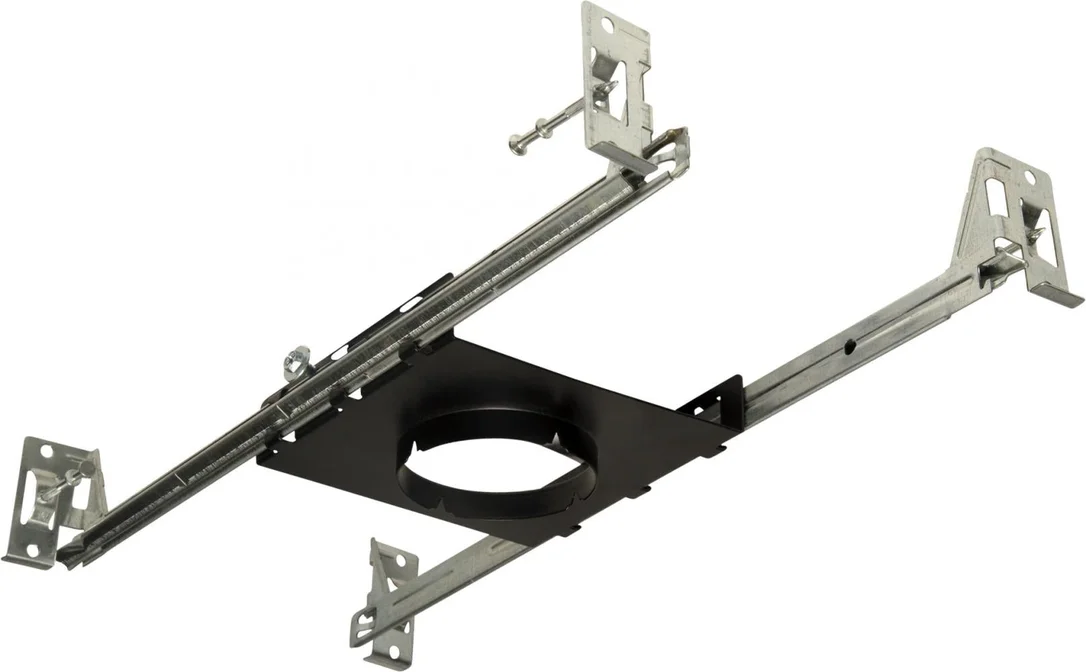

- Remodel requires no frame. New construction E1LF2 frame available.
- UL Damp Location Rated
- UL Listed, Meets California Title 24 JA8-2016-E and Energy Star standards.
- Life Span 50,000 Hours L70
Specifications
- Wattage: 6W
- Lumens: 625 lm – 700 lm
- Voltage: 12V AC
- Color Temp.: 2700K – 4000K
- Dimmable: Yes
- Lamp Type: LED
- Beam Angle: 28 – 50
| Catalog Number | Lamp type | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle | Finish | Spec |
|---|---|---|---|---|---|---|---|---|---|
| E1L22F27W | LED | 6W | 2700K | 625 lm | 12V AC | Yes | 38 | All White | |
| E1L22F30W | LED | 6W | 3000K | 650 lm | 12V AC | Yes | 38 | All White | |
| E1L22F35W | LED | 6W | 3500K | 675 lm | 12V AC | Yes | 38º | All White | |
| E1L22F40W | LED | 6W | 4000K | 700 lm | 12V AC | Yes | 38 | All White | |
| E1L22F27B | LED | 6W | 2700K | 625 lm | 12V AC | Yes | 38 | All Black | |
| E1L22F30B | LED | 6W | 3000K | 650 lm | 12V AC | Yes | 38 | All Black | |
| E1L22F35B | LED | 6W | 3500K | 675 lm | 12V AC | Yes | 38 | All Black | |
| E1L22F40B | LED | 6W | 4000K | 700 lm | 12V AC | Yes | 38 | All Black | |
| E1L22F27BZ | LED | 6W | 2700K | 625 lm | 12V AC | Yes | 38 | All Bronze | |
| E1L22NF30BZ | LED | 6W | 3000K | 650 lm | 12V AC | Yes | 28 | All Bronze | |
| E1L22WF35BZ | LED | 6W | 3500K | 675 lm | 12V AC | Yes | 50 | All Bronze | |
| E1L22WF40BZ | LED | 6W | 4000K | 700 lm | 12V AC | Yes | 50 | All Bronze |
