Description

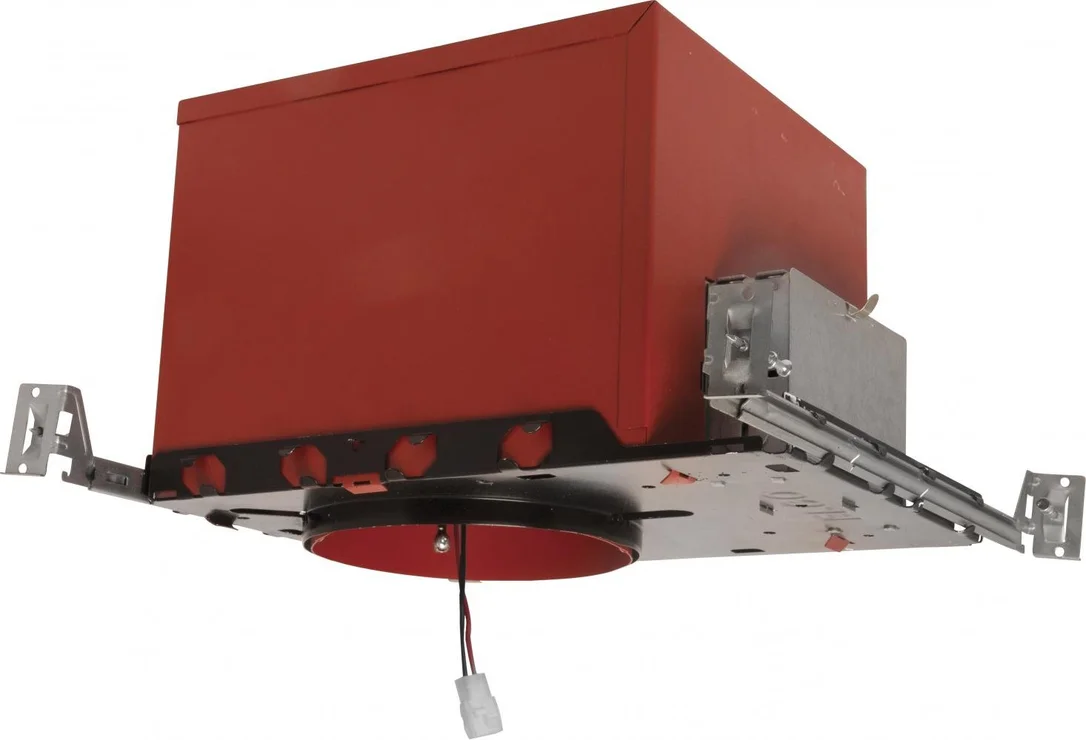

2-Hour Fire Rated for use with Cedar System LED Light Engines. Designed for fire safety and performance, this 6″ Cedar System New Construction Housing is cUL Listed for 2-hour fire resistance, with integrated non-combustible insulation for sound reduction. Offers 1200 lumens, Sunset dimming, and flicker-free operation. Compatible with ELCO Cedar System 6″ LED Light Engines (Gen 2 only). Meets Title 24 requirements and includes an optional 90-minute emergency backup. USA designed and assembled with a 5-year limited warranty.

Specifications:

Manufacturer Name: Elco Lighting
SKU: E6FH12ICASD
Lumens (lm): 1200 lm
Voltage: 120/277V
Dimming: Sunset
Power Factor: ‰¥0.95
Location Rating: Damp Rated
Certification: Listed

Features:

cUL Listed for 2-Hour Fire Resistance to meet and exceed strict fire safety codes.
Integrated Non-combustible insulation acts as a sound barrier minimizing sound transfer between floors.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
Meets Title 24 requirements.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar System 6″ LED Light Engines.
2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.
