Description

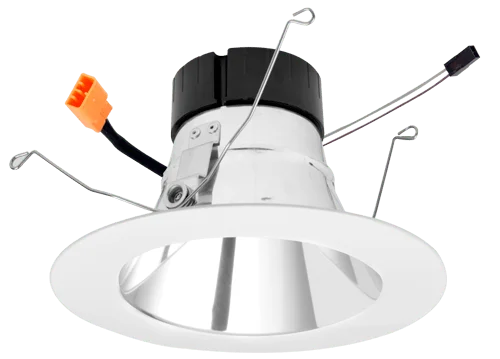

The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction, Remodel with ELCO Ply System Housings or as a retrofit with existing housings.
FEATURES:
0-10V Dimmable
120/277V Drive
Soft white lens provides smooth lumen distribution and
eliminates LED pixelation
Deep set LED trim reduces glare while providing even
illumination
93+ CRI for extremely accurate color rendering
CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
Life span of 50,000 hours L70
SPECIFICATIONS:
- Wattage 20W
- Lumens 1350 lm – 1500 lm
- Voltage 120/277V
- Color Temp. 3000K – 4000K
- Dimmable 0-10V
- Lamp Type LED
- CRI 93+
- Wet Location Listed
Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LEDArray technology.
Construction: For use in IC and non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.
Installation: Quick connect for use with EL76FICDXA, EL76FICDXA-B, EL760ICDXA, EL760ICDXA-B, EL760ICDXA-EM5 and EL760RICDXA.
Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.
LED Technology: Extremely accurate color rendering with 93+ CRI. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.
Dimmability: Works with 0-10V dimmers . Dims down to 10%. For full list of dimmers refer to the Dimme
Compatibility List. Industry leading dimming. Dims smoothly with no hot spots or flickering.
Listings: Listed for Wet Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016-E.
Warranty: ELCO Products are built to last with a 5-year Limited Warranty.
