Description

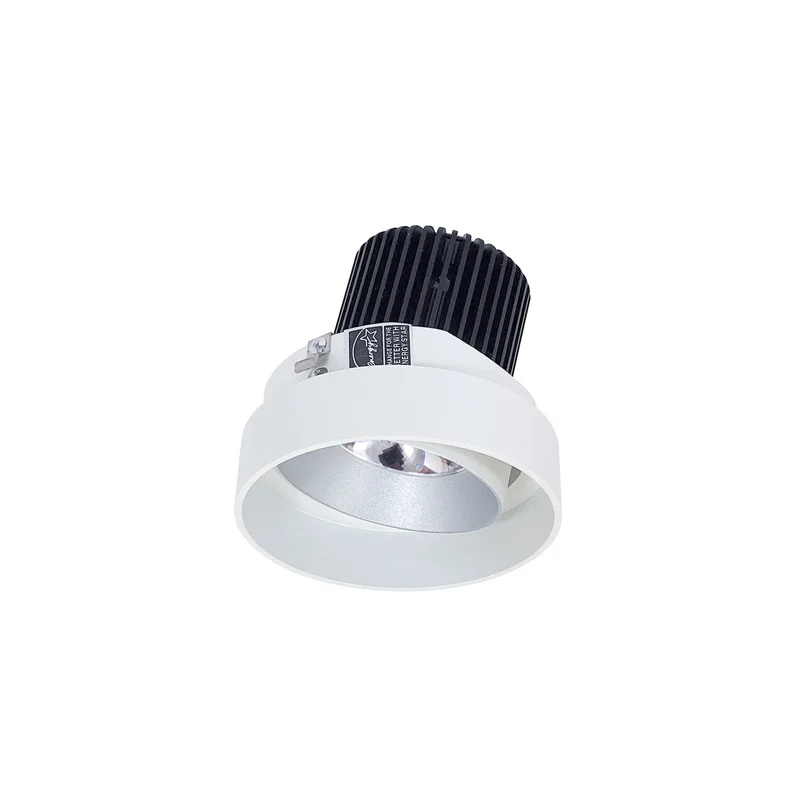

4³ Trimless Iolite luminaires have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Regressed cone reflector optimizes visual cut-off and adjust up to 35°.
Color Temperatures: 2700K
Lumens / Wattage:
- 800lm / 14W (NHIOICD-48, NHIOICDCP-48)
- 1000lm / 14W (NHIOICD-48, NHIOICDCP-48)
- 1500lm / 20W (NHIOICD-415, NHIOICDCP-415)
- 2000lm / 24W (NHIOICD-420, NHIOICDCP-420)
Optics: Field Changeable (Spot, Narrow Flood, Flood) or 10° Narrow Spot
Required: Trimless Mud Plate (NIO-TLMR-4RA)
Additional information
| Family |
Iolite |
|---|---|
| Light Source |
LED, Comfort Dim |
| Aperture Size |
4″ |
| Flange Type |
Trimless |
| Application |
Adjustable, Downlight |
| Construction Type |
Chicago Plenum, New Construction, Air-Tight IC |
| Options |
Title 24, ENERGY STAR certified |
