Description

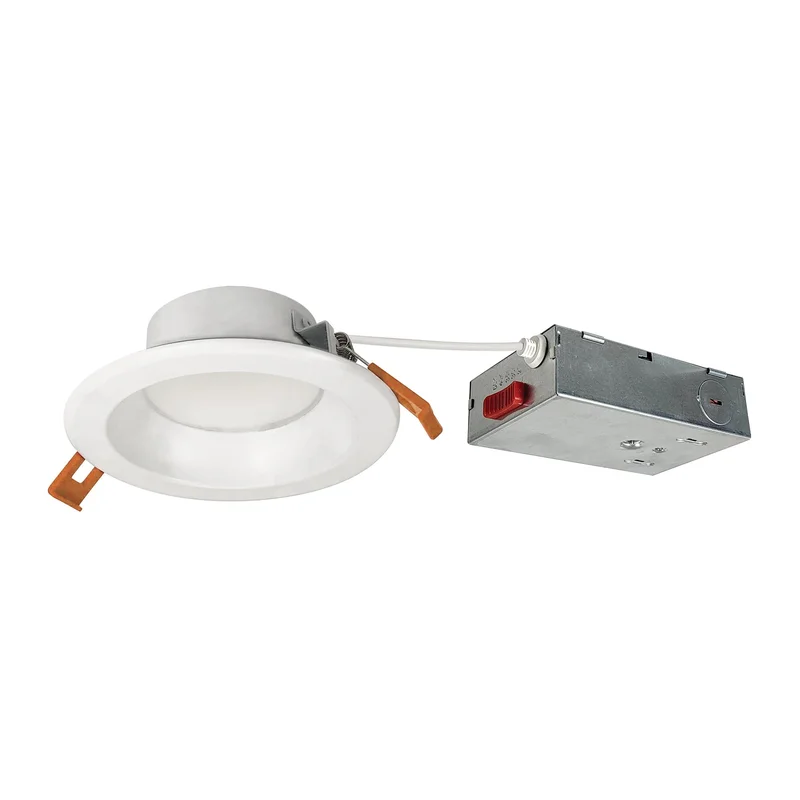

Details of the Nora Lighting NLTH-41TW-MPWLE4 4″ Theia LED Downlight with Selectable CCT, 120-277V 0-10V, Matte Powder White Finish

4″ Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling. No housing required! Input Voltage: 120-277V Lumens / Wattage: 950lm / 10W Color Temperature: Selectable CCT (27K/30K/35K/40K/50K) Color Rendering Index: 90+ CRI Dimming: 0-10V Finish: Matte Powder White Reflector / Matte Powder White Flange Accessories: New construction frame-ins ordered separately (NF-R246 or NFP-R413) Emergency: Remote emergency battery ordered separately (NEPK-20LEDUNV) Listing: cETLus Listed for Wet Locations

Specification

• Brand: Nora Lighting
• SKU: NLTH-41TW-MPWLE4
• UPC: 732180835133
• Product Line: LE93
• Product Family: Theia
• Product Type: Recessed
• Color Temperature: Selectable CCT (27K / 30K / 35K / 40K / 50K)
• Wattage: 10W
• Lumens: 950lm
• CRI: 90
• Product Dimensions (W x H x L): 5 x 1.75 x 24.375
• Finish Color: Matte Powder White
• 0.75

Accessories:

• NF-R246: New Construction Frame
• NFC-R430: New Construction Frame-In with Colla
• NFP-R413: New Construction Plate
• NEPK-20LEDUNV: Remote Emergency Driver

Downloads

Specification Sheet Sales Sheet IES File Instruction Sheet Brochure

Photometric Layout
