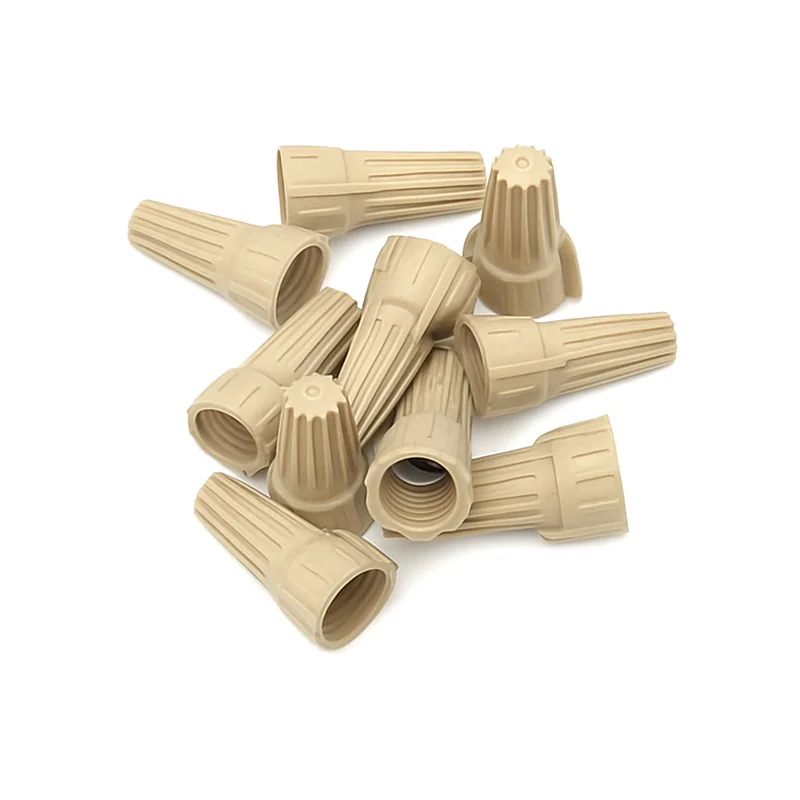

Description

• Specifications:

  • Material Compatibility: For use with bare copper wire

  • Wire Range:

    • Minimum: One #18 and one #20 AWG

    • Maximum: Two #14 AWG wires

  • Voltage Rating: Up to 600 Volts

  • Temperature Rating: 221°F (105°C)

  • Certifications: UL 486C Listed, CSA C22.2 No. 188 Certified

  Features:

  • Sturdy Flame-Retardant Shell: UL 94V-2 thermoplastic housing resists heat and enhances safety

  • Square-Wire Spring: Fixed spring forms its own threads for a secure, lasting connection

  • Positive-Grip Design: Eliminates the need for pre-twisting, enabling fast, tool-free installation

  • Deep Skirt: Offers additional protection against flashover and turned-back strands

  • Reusable: Ideal for making circuit modifications or additions without replacing the connector
