Description

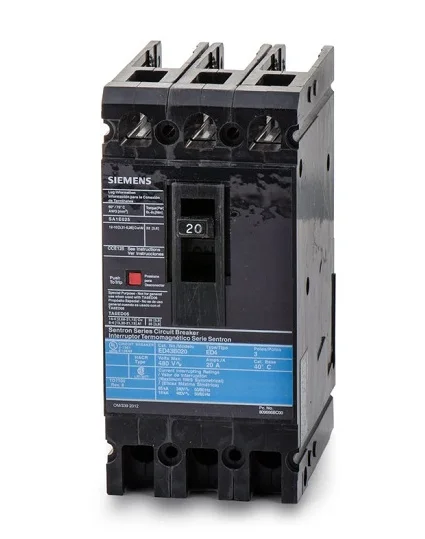

Siemens ED43B020

ED43B020 Product

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL – MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 20A 3-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 – 10AWG (CU) / 12 – 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.

Specifications:

Actuator Varying
Amperage 20 Amp
Applications Standard 40C Breake
Current 20 Amp
Enclosure Varying
Frame ED
Frequency 50/60 Hz
Interrupt Rating 18 kAIC
Load Rating N/A
Number of Poles 3 Pole
Operating Temperature 40C
Standard HACR
Tc Connection N/A
Temperature Rating 40 degrees C
Trip Range N/A
Trip Type Thermal Magnetic
Type ED4
Voltage 480 Volt
