Description
Reliable Multi-Tenant Metering Made Easy

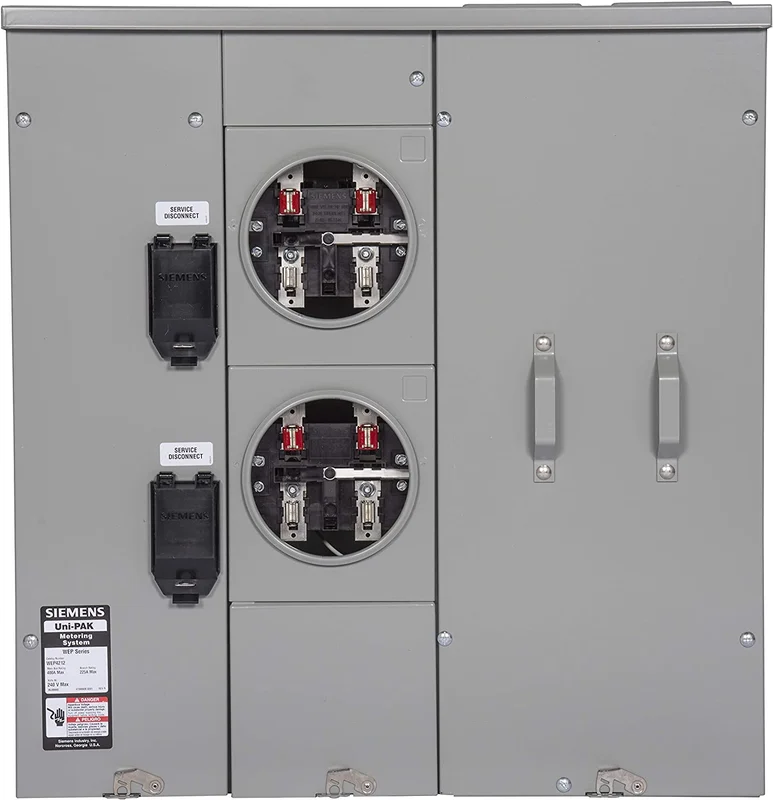

The Siemens WEP2211 Uni-PAK Metering Panel is a durable, pre-bussed 2-gang solution ideal for duplexes, garden-style apartments, small commercial buildings, and professional offices. Designed with simplicity and reliability in mind, it features a 200A bus rating, ring-type meter sockets, and EUSERC compliance — all in a space-saving, wall-mounted enclosure.
Whether you’re managing new construction or a retrofit, this panel offers secure tenant metering with flexible feed options and fast installation.
Key Features
-
200A Main Bus Rating with 125A Tenant Provisions (100,000 AIC)
-
2-Gang Ring-Type Meter Sockets with split covers for security
-
Pre-Bussed & Self-Contained Design – No add-ons required
-
Top or Bottom Feed for cable entry flexibility
-
Bottom & Rear Wiring Exits – Neutral and ground at bottom only
-
7 Total Knockouts with multiple sizes for simplified conduit runs
-
Heavy-Duty Construction: Zinc-coated steel with ANSI #61 light grey finish
-
Certified & Compliant: UL-50, UL-67, UL-414 listed and EUSERC approved
-
Compatible Breakers: QP, QPH, HQP, MP-T, MP-HT, MP-MT, QS, QSH, QSHH, HQS, HQSH
Specifications
-
Voltage: 120/240V
-
Amperage: 200A main bus, 125A max per socket
-
Phase: Single-phase
-
Dimensions: 7.25″ W x 14.05″ D x 33.38″ H
-
Terminals: 3×2 insulated studs
-
Mounting: Wall-mounted
Applications
-
Duplexes and Triplexes
-
Small Apartment Complexes
-
Office Buildings
-
Light Commercial Developments
Built to Perform. Ready to Install.
The WEP2211 is a go-to metering solution for contractors and property managers who need fast, code-compliant installs and long-term reliability.
Download the Specification Sheet for more detailed product information.
