Description

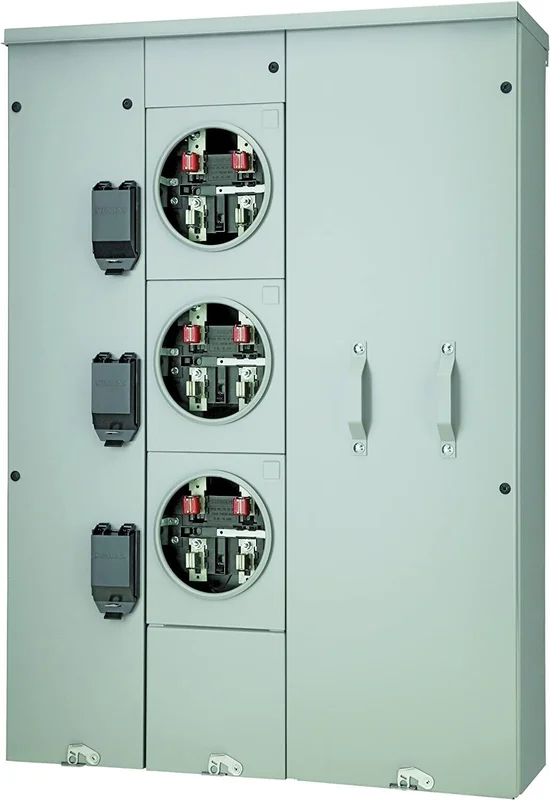

Siemens WEP3311 all new Uni-PAK Metering offers maximum flexibility and ease of installation to meet the service requirements of multiple position metering projects. The outdoor/indoor devices are available in two through 6 gang set-ups which consist of a pull section with main lugs or stud terminations, and 4/5 in. jaw meter sockets with tenant circuit breaker provisions. The attractive Uni-PAK devices accept overhead or underground service terminations and are designed for wall-hung surface or semi-flush mounting.
- Individual split covers UL Listed for 60/70C conductors
- Self-contained meter center, three gang, 125 Amp breaker positions
- Compact, pre-bussed, easy to handle, hang and wire current-carrying parts
- Bottom and rear branch wiring exits (neutral and ground at bottom only)
- Aluminum/copper lay-in lugs, except 2 socket units
- ANSI #61 light gray electrodeposited paint on zinc-coated G90 steel
- Meets EUSERC specifications when NEMA stud kit and flushing ring (if required) is field added
UPC CODE: 040892875904
| Type | : | 11-Cutout |
| Socket Type | : | Self-Contained |
| Feed Type | : | Bottom/Top |
| Voltage Rating | : | 120 VAC |
| Bus Amps | : | 300 A |
| Socket Amps | : | 125 A |
| Number of Meter Sockets | : | 3 |
| Phase | : | 1 |
| Wire Size | : | 2 AWG to 600 kcmil |
| Socket Cover Style | : | Ring |
| Socket Jaws | : | 4 |
| Breaker Type | : | HQP/MP-T/MP-HT/MP-MT/QP/QPH/ |
| Mounting Type | : | Surface |
| Dimensions | : | 38.75 in H x 25.42 in W x 7.56 in D |
