Description

Technical Specs

• Voltage: 120 VAC 60Hz
• Wattage: 20W
• Power Factor: 0.9
• Efficacy: 75 LPW
• Optics: White Translucent Acrylic Lens
• Construction: Spun aluminum Steel (Gold Finish)
• Gasket: Closed Cell Neoprene Foam Gasket
• Operating Temp: -4F to +104F
• Suitable for Damp Locations When Gasket is Used
• Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
• Total Lumens: 1500LM
• Color Temperatures: 2700K/3000K/3500K/4000K/5000K
• Multi-CCT (selectable with switch is on the LED Board Under the Lens)
• Color Rendering Index: CRI %80
• IP Rating: IP20

Applications

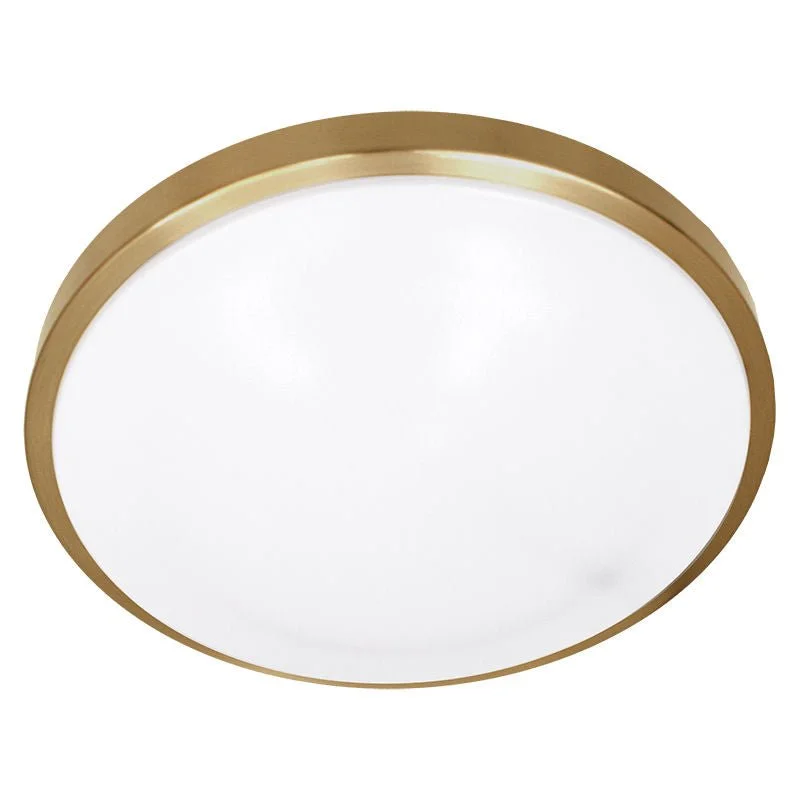

• The LED Flush Mount Surface Fixture is a low profile down light intended for ceiling or wall mount applications. Driver on Board (DOB) technology, with no driver or transformer needed. These flush mount ceiling lights mount directly to a 4� deep dish junction box ideal for Residential and commercial applications

Download PDF File

Specification
