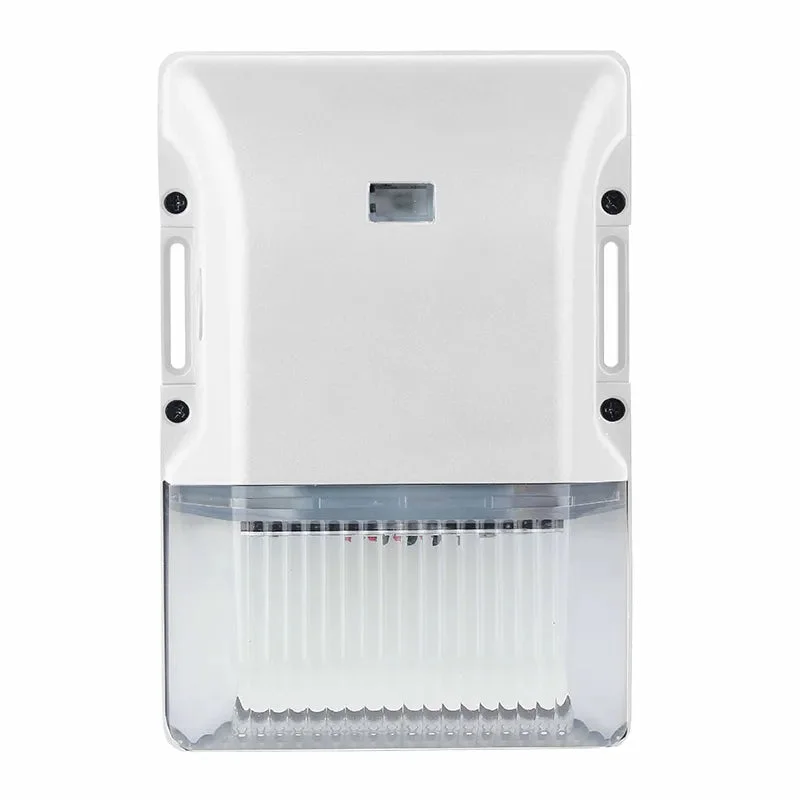

Westgate LESW-8-15W-MCTP-P-WH

LESW-8-15W-MCTP-P-WH Product

Compact and efficient LED wall pack with selectable wattage and color temperature, built-in dusk-to-dawn photocell, durable IP65-rated housing, and 135 LPW efficacy—ideal for wet locations and long-term outdoor use.

Specifications:

Manufacturer: Westgate
SKU: LESW-8-15W-MCTP-P-WH
UPC: 845060096385
Voltage: 120–277V AC 60Hz
Wattage: 8W/12W/15W
Power Factor: >0.90
Efficacy: 135 LPW
Photocell: Includes pre-wired photo electric control (dusk to dawn), 120V, removable
Photocell Response Time: Maximum 3 seconds
Back Plate: Die-cast aluminum
Housing & Lens: Polycarbonate
Optics: Non-cutoff design for maximum light distribution
Operating Temperature: -40ºF to +113ºF
Location Rating: Wet location
Warranty: 7-year warranty
IP Rating: IP65
Dimming: 0–10V dimming
LED Type/Brand: 2835 LUMILEDS
Front: Polycarbonate lens and housing
Power Configuration: Multi-power selectable (switch inside the fixture)
Total Lumens: 1080LM/1650LM/2025LM
Color Temperatures: 3000K/4000K/5000K
Color Rendering Index (CRI): ≥70
Beam Angle: 100°
Rated Life: 70,000 hrs

About Westgate:

Westgate’s full line of LED Outdoor lighting products is designed using high performance 5th generation COB technology and carries an industry first. Shop for Westgate Lighting LED products, we offer a wide range of indoor, outdoor light bulbs and fixtures.
